Details

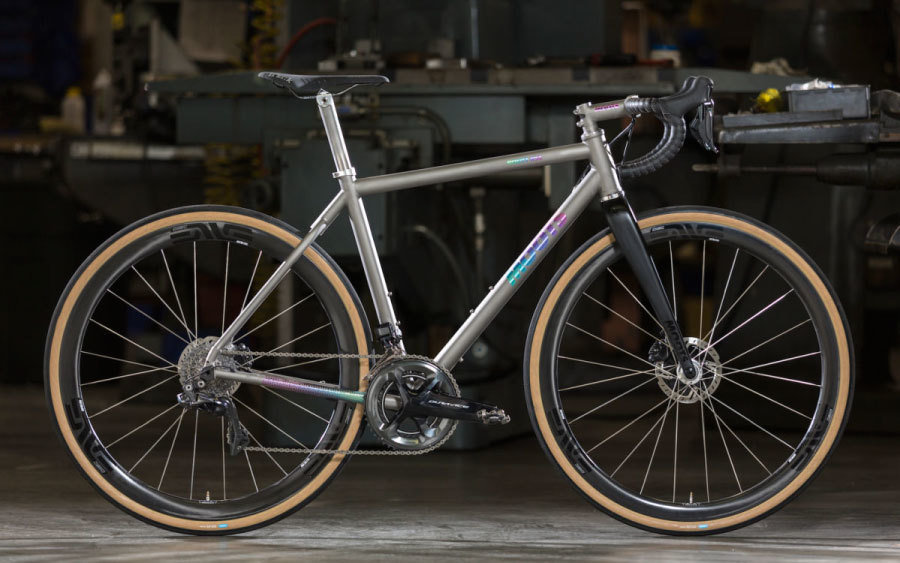

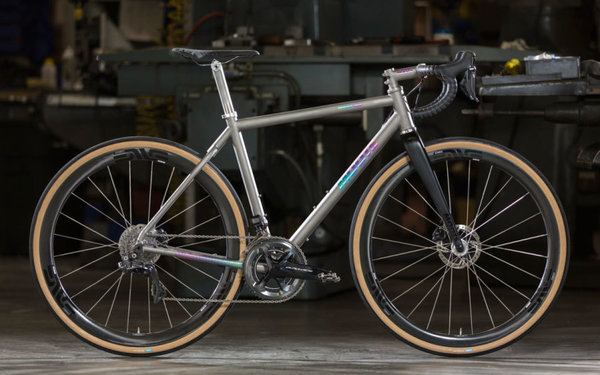

The ROUTT RSL is the ultimate gravel grinder and multi-surface racing machine. Lightweight yet stiff and durable titanium makes an ideal material for the demands of all-road and off-road racing and fast-paced exploring. If you’re looking for an advantage for the next big gravel race like the Dirty Kanza, the ROUTT RSL is perfect for you.
Moots took designs from their cyclocross and endurance road bikes and tweaked them to create something with enough control on gravel and dirt without losing the speed and tight handling you come to expect from Moots performance bikes. It’s got a race fit geometry that puts the rider in a neutral to positive position for optimum power transfer and comfort. It has a lower bottom bracket and slightly slackened angels enough to add a grounded stability on rougher surfaces but not so much that it loses its racing roots.
Moots’ internal double-butted tube set combined with a custom 3D printed dropout, 142 x 12 thru axle and flat mount disc brake mount increases stiffness for quick acceleration. The 44mm head tube houses a Moots tapered carbon cross and gravel fork that’s stiff where it counts and flexible when it needs to be.
Thru axles make wheel swaps a breeze, and with an additional wheelset the ROUTT RSL can run a slick and narrow road tire all the way up to some 40mm dirt loving rubber. So depending on your daily ambitions, you can be prepared for a fast paced group road ride or a solo gravel excursion.
The ROUTT RSL is designed to fit seven stock sizes and 7 designs, and all angles, tube lengths, tube diameters and wall thickness are size-selected to create the perfect ride feel. You can also pair this frame with a LAUF gravel for if you want to add suspension.
MOOTS SELECT BUILDS provide a quicker delivery when choosing one of the curated build kits. The MOOTS SELECT BUILDS come standard with the ETCHED finish but can be upgraded to a full array of finish options including Signature Series anodized logos and patterns.
FRAME SIZE [CM] | EFFECTIVE TOP TUBE [CM] | SEAT TUBE /C-T/ [CM] | HEAD TUBE LENGTH [CM] | HEAD ANGLE | SEAT ANGLE | BB DROP [CM] | CHAIN STAY LENGTH [CM] | STAND-OVER [IN] | STACK [MM] | REACH [MM] |
---|---|---|---|---|---|---|---|---|---|---|
50 | 52.0 | 46.0 | 11.0 | 71.50 | 75.00 | 7.1 | 43.0 | 29.5 | 556 | 369 |
52 | 53.0 | 48.0 | 12.0 | 72.00 | 74.25 | 7.1 | 43.0 | 29.9 | 567 | 369 |
54 | 54.5 | 51.0 | 13.0 | 72.50 | 74.00 | 6.9 | 43.0 | 30.8 | 576 | 379 |
55 | 55.5 | 52.0 | 14.0 | 72.50 | 73.50 | 6.9 | 43.0 | 31.1 | 585 | 381 |
56 | 56.5 | 53.0 | 15.0 | 72.50 | 73.25 | 6.9 | 43.0 | 31.5 | 595 | 385 |
58 | 58.5 | 55.0 | 16.0 | 73.00 | 73.00 | 6.9 | 43.0 | 32.0 | 606 | 400 |
60 | 60.0 | 57.0 | 18.0 | 73.00 | 72.75 | 6.8 | 43.0 | 33.8 | 624 | 406 |
Videos
ROUTT RSL
Part Numbers
Option | MPN |
---|---|
Ultegra R8020 Mechanical / 50 | bk-routtrsl-50-ultr8020-2020 |
GRX Di2 1X / 50 | bk-routtrsl-50-grx-2020 |
Ultegra R8070 Di2 / 50 | bk-routtrsl-50-ultr8070-2020 |
Force AXS 2X / 50 | bk-routtrsl-50-force-2020 |
Frameset Di2 / 50 | fr-routtrsl-50--2020 |
Ultegra R8020 Mechanical / 52 | bk-routtrsl-52-ultr8020-2020 |
GRX Di2 1X / 52 | bk-routtrsl-52-grx-2020 |
Ultegra R8070 Di2 / 52 | bk-routtrsl-52-ultr8070-2020 |
Force AXS 2X / 52 | bk-routtrsl-52-force-2020 |
Frameset Di2 / 52 | fr-routtrsl-50--2020 |
Ultegra R8020 Mechanical / 54 | bk-routtrsl-54-ultr8020-2020 |
GRX Di2 1X / 54 | bk-routtrsl-54-grx-2020 |
Ultegra R8070 Di2 / 54 | bk-routtrsl-54-ultr8070-2020 |
Force AXS 2X / 54 | bk-routtrsl-54-force-2020 |
Frameset Di2 / 54 | fr-routtrsl-50--2020 |
Ultegra R8020 Mechanical / 55 | bk-routtrsl-55-ultr8020-2020 |
GRX Di2 1X / 55 | bk-routtrsl-55-grx-2020 |
Ultegra R8070 Di2 / 55 | bk-routtrsl-55-ultr8070-2020 |
Force AXS 2X / 55 | bk-routtrsl-55-force-2020 |
Frameset Di2 / 55 | fr-routtrsl-50--2020 |
Ultegra R8020 Mechanical / 56 | bk-routtrsl-56-ultr8020-2020 |
GRX Di2 1X / 56 | bk-routtrsl-56-grx-2020 |
Ultegra R8070 Di2 / 56 | bk-routtrsl-56-ultr8070-2020 |
Force AXS 2X / 56 | bk-routtrsl-56-force-2020 |
Frameset Di2 / 56 | fr-routtrsl-50--2020 |
Ultegra R8020 Mechanical / 58 | bk-routtrsl-58-ultr8020-2020 |
GRX Di2 1X / 58 | bk-routtrsl-58-grx-2020 |
Ultegra R8070 Di2 / 58 | bk-routtrsl-58-ultr8070-2020 |
Force AXS 2X / 58 | bk-routtrsl-58-force-2020 |
Frameset Di2 / 58 | fr-routtrsl-50--2020 |
Ultegra R8020 Mechanical / 60 | bk-routtrsl-60-ultr8020-2020 |
GRX Di2 1X / 60 | bk-routtrsl-60-grx-2020 |
Ultegra R8070 Di2 / 60 | bk-routtrsl-60-ultr8070-2020 |
Force AXS 2X / 60 | bk-routtrsl-60-force-2020 |
Frameset Di2 / 60 | fr-routtrsl-50--2020 |
