Details

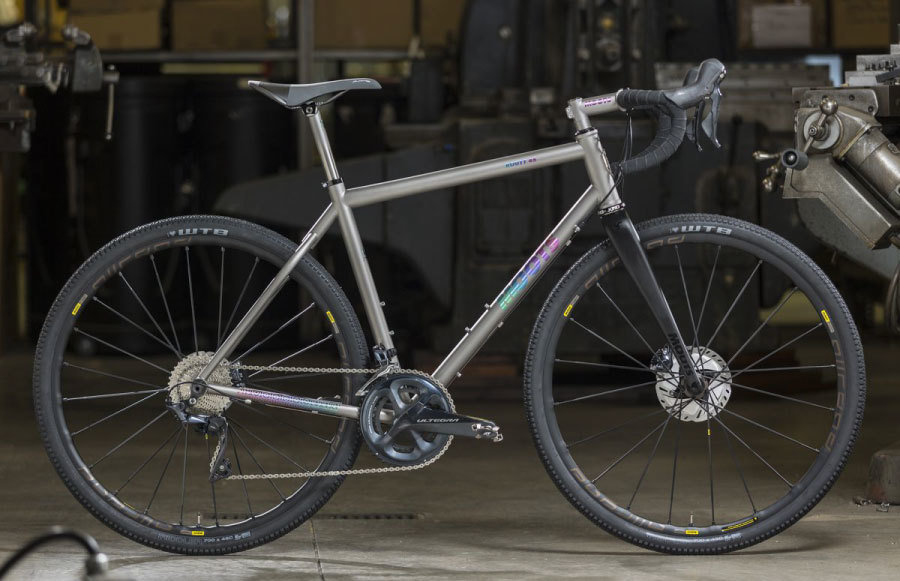

The ROUTT 45 is a versatile fun-seeking adventure machine. It loves spirited gravel rides and bikepacking adventures, and is perfect for fast-paced workouts, multi-day light touring excursions, as well as long days exploring infinite backroads and trails.
This model has an endurance-oriented fit and a geometry that finds the sweet spot between stability over rough terrain and tight handling and responsiveness. Shortened chainstays aid in climbing and cornering and a lower, stiffer bottom bracket adds control as well as snappy acceleration. A Moots full-carbon gravel fork offers the best combination of stiffness and compliance and even comes with hidden fender eyelets for wet weather riding. A proprietary 6/4 titanium 3D printed flat-mount disc mount allows for perfect rear wheel alignment and adds stiffness and power transfer capability.
The ROUTT 45 comes with plenty of features that make it a true gravel and adventure bike. It’s optimized for 700 x 30-45mm tires for big time traction, stability, and speed over dirt tracks and gravel. It’s got clearance for a compact double chainring one a 1x drivetrain with up to a 42-tooth chainring so you can dial in your gearing. There’s not one, not two, but three water bottle cages to keep you riding longer and farther.
The ROUTT 45 is designed with American-made titanium to fit seven stock sizes and 7 designs, and all angles, tube lengths, tube diameters and wall thickness are size-selected to create the perfect ride feel. You can also pair this frame with a LAUF gravel for if you want to add suspension.
MOOTS SELECT BUILDS provide a quicker delivery when choosing one of the curated build kits. The MOOTS SELECT BUILDS come standard with the ETCHED finish but can be upgraded to a full array of finish options including Signature Series anodized logos and patterns.
FRAME SIZE (CM) | EFFECTIVE TOP TUBE (CM) | SEAT TUBE /C - T/ (CM) | HEAD TUBE LENGTH (CM) | HEAD ANGLE | SEAT ANGLE | BB DROP (CM) | CHAIN STAY LENGTH (CM) | STAND OVER (IN) | TOP TUBE SLOPE | FORK RAKE (MM) | STACK | REACH |
---|---|---|---|---|---|---|---|---|---|---|---|---|
50 | 51.5 | 46 | 12 | 70.75 | 75.00 | 7.1 | 43.7 | 30.0 | 14.2 | 47 | 562 | 365 |
52 | 52.5 | 48 | 14 | 71.00 | 74.25 | 7.1 | 43.7 | 31.0 | 14.3 | 47 | 582 | 361 |
54 | 54.0 | 51 | 15 | 71.50 | 74.00 | 6.9 | 43.7 | 31.6 | 11.6 | 47 | 591 | 371 |
55 | 55.0 | 52 | 16 | 71.50 | 73.50 | 6.9 | 43.7 | 31.9 | 11.5 | 47 | 601 | 373 |
56 | 56.5 | 53 | 17 | 72.00 | 73.25 | 6.9 | 43.7 | 32.4 | 11.0 | 47 | 612 | 381 |
58 | 58.0 | 55 | 19 | 72.00 | 73.00 | 6.9 | 43.7 | 33.0 | 10.6 | 47 | 631 | 388 |
60 | 60.0 | 57 | 21 | 72.50 | 72.75 | 6.8 | 43.7 | 33.8 | 10.1 | 47 | 651 | 399 |
Part Numbers
Option | MPN |
---|---|
Ultegra R8020 Mechanical / 50 | bk-routt45-50-ultr8020-2020 |
GRX Di2 1X / 50 | bk-routt45-50-grx-2020 |
Ultegra R8070 Di2 / 50 | bk-routt45-50-ultr8070-2020 |
Force AXS 2X / 50 | bk-routt45-50-force-2020 |
Frameset Di2 / 50 | fr-routt45-50-2020 |
Ultegra R8020 Mechanical / 52 | bk-routt45-52-ultr8020-2020 |
GRX Di2 1X / 52 | bk-routt45-52-grx-2020 |
Ultegra R8070 Di2 / 52 | bk-routt45-52-ultr8070-2020 |
Force AXS 2X / 52 | bk-routt45-52-force-2020 |
Frameset Di2 / 52 | fr-routt45-52-2020 |
Ultegra R8020 Mechanical / 54 | bk-routt45-54-ultr8020-2020 |
GRX Di2 1X / 54 | bk-routt45-54-grx-2020 |
Ultegra R8070 Di2 / 54 | bk-routt45-54-ultr8070-2020 |
Force AXS 2X / 54 | bk-routt45-54-force-2020 |
Frameset Di2 / 54 | fr-routt45-54-2020 |
Ultegra R8020 Mechanical / 55 | bk-routt45-55-ultr8020-2020 |
GRX Di2 1X / 55 | bk-routt45-55-grx-2020 |
Ultegra R8070 Di2 / 55 | bk-routt45-55-ultr8070-2020 |
Force AXS 2X / 55 | bk-routt45-55-force-2020 |
Frameset Di2 / 55 | fr-routt45-55-2020 |
Ultegra R8020 Mechanical / 56 | bk-routt45-56-ultr8020-2020 |
GRX Di2 1X / 56 | bk-routt45-56-grx-2020 |
Ultegra R8070 Di2 / 56 | bk-routt45-56-ultr8070-2020 |
Force AXS 2X / 56 | bk-routt45-56-force-2020 |
Frameset Di2 / 56 | fr-routt45-56-2020 |
Ultegra R8020 Mechanical / 58 | bk-routt45-58-ultr8020-2020 |
GRX Di2 1X / 58 | bk-routt45-58-grx-2020 |
Ultegra R8070 Di2 / 58 | bk-routt45-58-ultr8070-2020 |
Force AXS 2X / 58 | bk-routt45-58-force-2020 |
Frameset Di2 / 58 | fr-routt45-58-2020 |
Ultegra R8020 Mechanical / 60 | bk-routt45-60-ultr8020-2020 |
GRX Di2 1X / 60 | bk-routt45-60-grx-2020 |
Ultegra R8070 Di2 / 60 | bk-routt45-60-ultr8070-2020 |
Force AXS 2X / 60 | bk-routt45-60-force-2020 |
Frameset Di2 / 60 | fr-routt45-60-2020 |
