Details

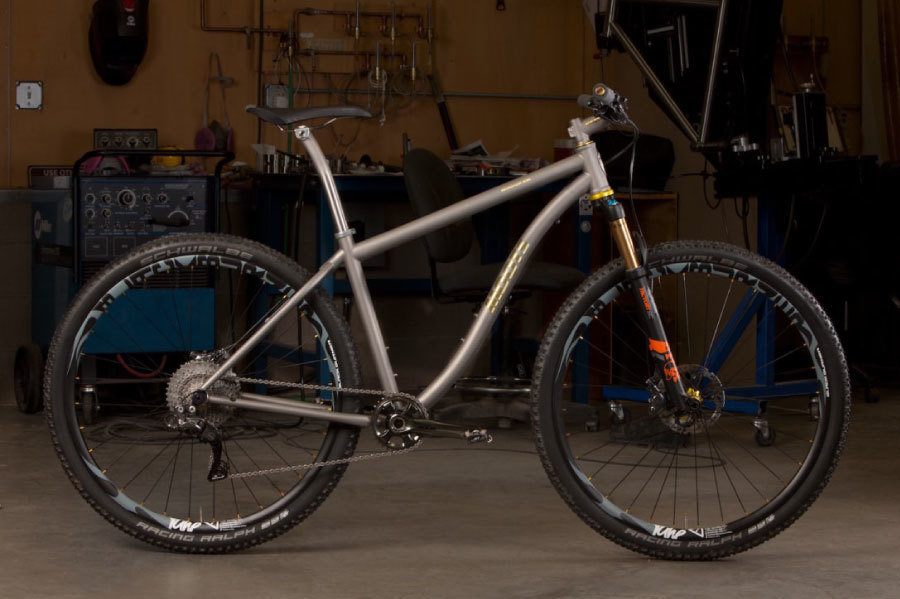

If you’re looking for the perfect cross country race bike, look no further than the Mooto X RSL. It’s carefully designed to a lightweight, tight-handling, climb-loving, ultra durable mountain bike that you can ride all the way to the podium.
The US-made titanium is used to create an oversized, extra stiff Pi-Tech tube set with a 44mm head tube and a 73mm bottom bracket that allows for tons of power transfer and toughness that you can count on while you’re out shredding around.
The Fox 34 SC fork offers 120mm of front suspension that will keep you comfortable and in control and the Astral Serpentine 29-inch wheels will ensure you can roll over everything in your path for unparalleled speed. This bike is lightning quick, and it’s dying to race XC or rip around your local trails.
The Mooto X RSL comes in 5 standard sizes from XS to XL and offers riders opportunities to customize their frame with added upgrades like eyelets for a third water bottle, slider dropouts, internal electronic compatible modifications, dropper post routing, and even custom sizing.
MOOTS SELECT BUILDS provide a quicker delivery when choosing one of the curated build kits. The MOOTS SELECT BUILDS come standard with the ETCHED finish but can be upgraded to a full array of finish options including Signature Series anodized logos and patterns.
FRAME SIZE | EFFECTIVE TOP TUBE (IN) | SEAT TUBE /C - T/ (CM) | HEAD TUBE LENGTH (CM) | HEAD ANGLE | SEAT ANGLE | BB HEIGHT (IN)** | CHAIN STAY LENGTH (CM) | STAND OVER (IN) | FORK TRAVEL | STACK | REACH |
---|---|---|---|---|---|---|---|---|---|---|---|
XS | 22.50 | 16.0 | 11 | 71.00 | 74.50 | 11.875 | 17.55 | 30.3 | 100MM | 627 | 397 |
S | 23.00 | 16.5 | 11 | 71.25 | 74.25 | 11.875 | 17.55 | 31.8 | 100MM | 628 | 407 |
M | 23.50 | 17.5 | 11 | 71.25 | 74.00 | 12.000 | 17.55 | 32.2 | 100MM | 625 | 417 |
L | 24.50 | 19.0 | 12 | 71.50 | 73.50 | 12.000 | 17.55 | 33.1 | 100MM | 636 | 433 |
XL | 25.50 | 21.0 | 13 | 71.50 | 73.50 | 12.125 | 17.55 | 34.2 | 100MM | 642 | 454 |
Part Numbers
Option | MPN |
---|---|
XT / X-Small | bk-mooto-xs-xt-2020 |
X01 AXS / X-Small | bk-mooto-xs-x01-2020 |
Frame only / X-Small | fr-mooto-xs-2020 |
XT / Small | bk-mooto-s-xt-2020 |
X01 AXS / Small | bk-mooto-s-x01-2020 |
Frame only / Small | fr-mooto-s-2020 |
XT / Medium | bk-mooto-m-xt-2020 |
X01 AXS / Medium | bk-mooto-m-x01-2020 |
Frame only / Medium | fr-mooto-m-2020 |
XT / Large | bk-mooto-lg-xt-2020 |
X01 AXS / Large | bk-mooto-lg-x01-2020 |
Frame only / Large | fr-mooto-lg-2020 |
XT / X-Large | bk-mooto-xl-xt-2020 |
X01 AXS / X-Large | bk-mooto-xl-x01-2020 |
Frame only / X-Large | fr-mooto-xl-2020 |
